iSpark+
Sparkingly easy
A simple, reliable and powerful generator
suitable for any situation !
Compact, it perfectly fits ambulatory rooms, but can also answer the needs of operating rooms.
Additional features such as multiple programs, level of performances and modularity make iSpark very versatile.
Extremely intuitive, easy to use without compromising safety, you will no longer perform without it!
1
2
3
1
Simultaneous use of two instruments
The work flow of the surgeon is optimised. A simple tap of the finger allows switching rapidly between both instruments.
2
Argon continuous pressure sensor
Safety is guaranteed by blocking the use of Argon if the purge and gas filling are not carried out correctly.
3
Sterile neutral electrode monitoring
For monopolar current, make sure of the correct application of the return electrode at all times during the procedure!

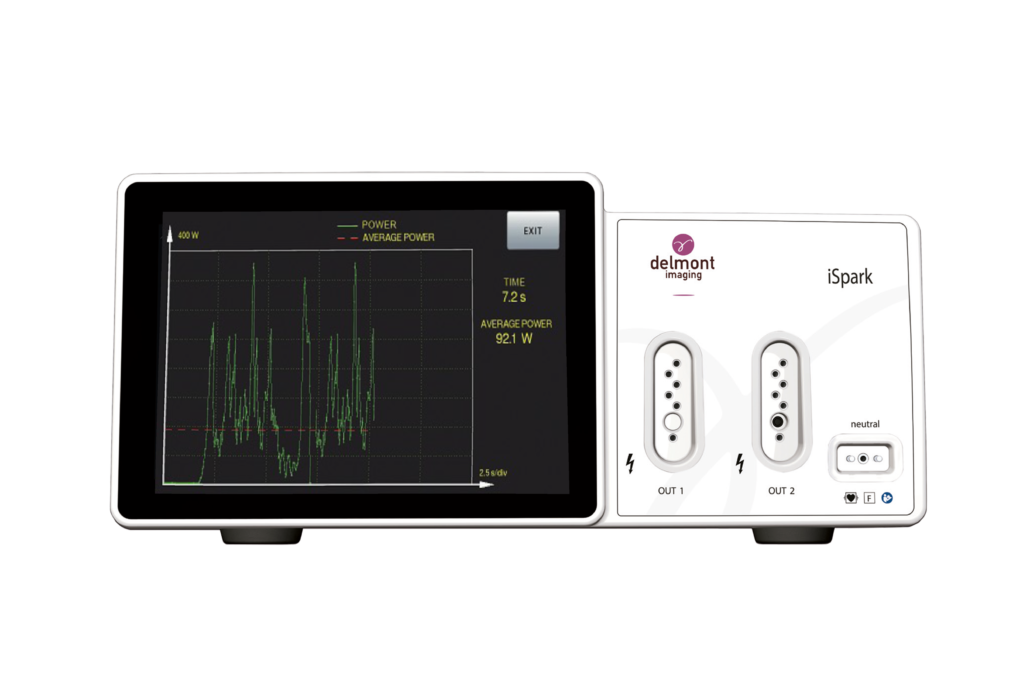

Safety at the core of the product
All aspects of its construction contribute to provide a safe device, the crucial quality of any high-frequency electrosurgical unit. Patient safety is ensured throughout the use of the product: from self-test procedures to the calculation of the actual power applied.
Whatever the pathology treated, the device automatically measures and adjusts the energy delivered.
Plug & play!

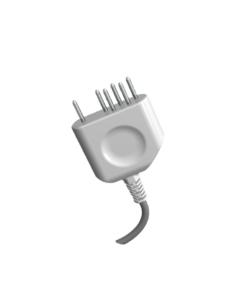

Our two SDS (Smart Device System) sockets recognize the cable when plugged in and automatically display compatible programs.
Whether for its ease of use or security reasons, this feature will surely appeal to you!

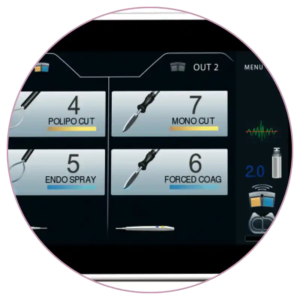

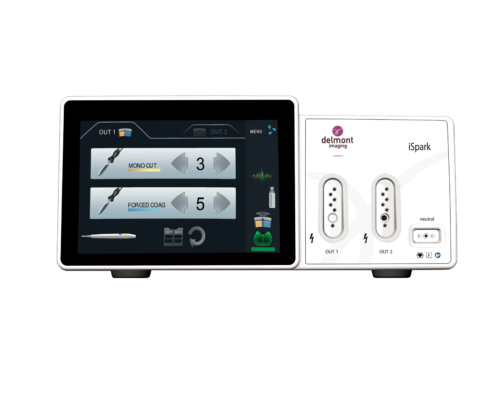

A user interface up to the task
Simplicity and intuitiveness are the key words of our interface.
All important informations are clearly visible from the main screen.
The large touch screen allows you to easily access and modify the device’s settings.
iSpark+: a generator according to your use
With up to 32 programs available, there is no doubt about the versatility of our generator.
Specific arthroscopy currents, bipolar resection, Argon modes or ThermoStapler® feature, only activate the program you need.

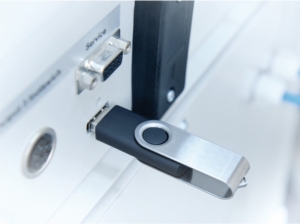

iSpark+ being upgradable, it will adapt to your later needs. You’ll just have to connect a USB key to update your unit in a few seconds!

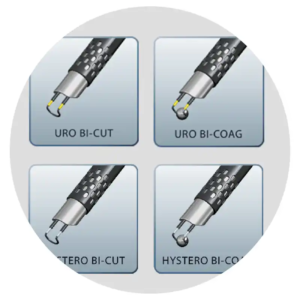

iSpark: dedicated to Gynecology and Urology
Discover iSpark, our non-evolutive model, specifically designed for surgeons specialised in gynecology and urology.
As easy to use and safe as the advanced iSpark+ model, it allows you to save money by focusing only on these two specialties.
iSpark+ references and features:
iSpark+
High Frequency Electrosurgery Generator
7’’ Touchscreen
Connectors:
– 2 Smart Device System sockets
– 1 neutral electrode socket
Automatic power control
Power supply: (220-240 V~ ; 50/60 Hz)
Power consumption: 1 350 VA
Dimensions: 385 x 305 x 141 mm
Weight: 7.0 kg
Leakage isolation: CF type
iSpark+
Evolutive version. Surgery program included. 1 Argon socket.
Ref. D100 400 052
iSpark
Non-evolutive version. Surgery and UROGYN programs only.
Ref. D100 400 050
Double wired footswitch
Cut and coagulation
Ref. D100 400 003
Single wired footswitch
Coagulation
Ref. D100 400 004
Cart for iSpark+ generator
Height: 1.20m
Weight: 16.5 kg
1 shelf for iSpark+
1 handle for maneuverability
1 basket for accessories
1 internal rack for Argon bottle
4 wheels, 2 with brake
Ref. D100 400 005

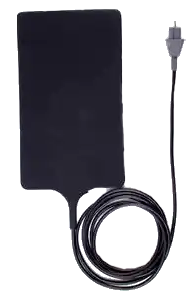

Return electrode for adult
Reusable.
Connection cable included.
Ref. D200 190 027
Return electrode for adult
Single use. Box of 8.
Connection cable included.
Ref. D200 190 028
Return electrode for children
Single use. Box of 8.
Connection cable included.
Ref. D200 190 029
iSpark bipolar resection cable
Smart Device System socket
Length: 4.5m
Compatible with our resectoscopes ReseCare and MaxiCare
Ref. D200 190 007
iSpark High Frequency bipolar cable
Smart Device System socket
Length: 3.0m
Compatible with our bipolar instruments (hysteroscopy and laparoscopy)
Ref. D200 190 020
