Colposcopes
Performance & Ergonomics
A full range of colposcopes
Exceptional image quality and outstanding performance
The optical components of our colposcopes are manufactured in Germany. They guarantee perfect image quality and high-precision examinations.
We offer you the right solution for your practice from a wide range of models and accessories.
In addition, the intuitive Report generated by our application imagynTM will enhance your patient communication.
Ergonomics adapted to your needs
Whether you’re looking for a minimum footprint, an obstacle-free workspace or the comfort of a swing arm, all these configurations are available in our range.
The handling and balance of our arms allow you to move them with one single finger!
From colposcopy to hysteroscopy in a flash

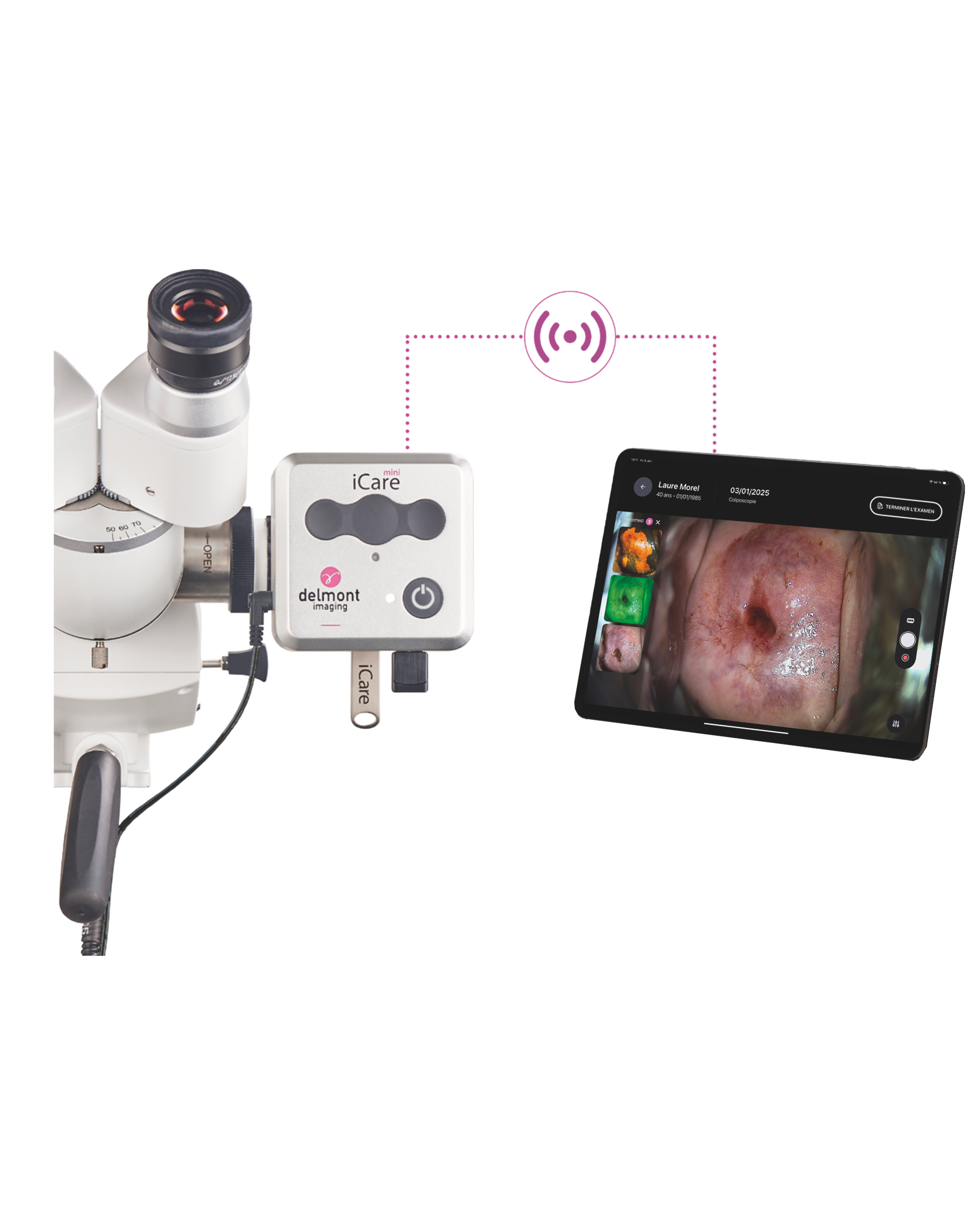

Our iCare+ imaging station is the ideal complement allowing an easy connection of the camera to the colposcope.
All your examination reports will be merged in a single database thanks to our imagynTM application.
Many accessories available
Whether you want to connect a camera, view the image on a monitor or use a laser, we have a solution for you!
An optical system to enhance sharpness and working comfort
With our Variofocus lens, you can stay sharp over a working distance of 200 to 350mm. No need to move the colposcope forward or backward during the examination for good visualization of the cervix and vagina.
The inter-pupillary distance and the dioptres are adjustable on all our mo- dels for a perfect adaptation to your eyesight. Last, you will always get the exact field of view you want, thanks to the different levels of magnification available.
Enjoy an extra-sharp image!
Our apochromatic lenses compensate chromatic and spherical aberrations, providing a faithful image with optimal colour rendering.
The green filter of our colposcopes is essential to increase the contrast between the mucous membrane and the blood vessels. Rough surface, granulation and hyper-vascularized areas will be quickly and easily identified.
References and specifications of our Colposcopes:
Colposcope swing arm
5 magnifications : 2,83x ; 4,25x ; 7,08x ; 11,33x ; 17,71x
Weight: : 44kg
Dimensions : 335 -1295mm
Ref. D100 300 000
Specifications :
Light : LED 100 000 lux
Apochromatic lenses
Eyepiece : 12,5x
Available fixed lenses : 175 ; 200 ; 250 ; 300 ; 400mm
Depth of field with fixed lens : 11mm
45° Binocular
Green filter
Colposcope over-the-shoulder
5 magnifications : 2,83x ; 4,25x ; 7,08x ; 11,33x ; 17,71x
Weight : 44kg
Dimensions : 635 -1295mm
Ref. D100 300 001
Specifications : : See Colposcope swing arm
Colposcope vertical post
3 magnifications : 4,25x ; 7,08x ; 11,33x
Weight : 18,14kg
Dimensions : 1016 -1193mm
Ref. D100 300 002
Specifications : See Colposcope swing arm
Double beamsplitter
50/50 & 20/80
Ref. D100 300 003
Variofocus – Large depth of field
F=200 to 350mm
Ref. D100 300 004
Adapter for video camera
Ref. D100 300 005
C-mount adapter for endoscope eyepiece
Color: Purple
Ref. D100 300 006
